Optimized performance and more for your ice rink

Refrigeration from M&M Carnot helps you maintain ice rinks of any size, from single rinks to large ice hockey complexes. You’ll control and preserve your rink at just the right temperature, meaning optimal performance for hockey, speed skating or curling. And you’ll do all of this while using natural, low-GWP refrigerants that are environmentally friendly, lower your compliance burdens, and reduce costs.

Innovative icon
Innovative refrigeration and controls

To maintain precise temperatures at ice rinks of any size.

Green leaf growth icon
Environmentally friendly

By using natural refrigerants for your ice rink.

Downward trend chart showing reduced pressure
Lower compliance burdens

Natural refrigerants have lower regulatory costs and compliance burdens.

Dollar symbol with downward arrow
Reduced costs

Substantially lower installation and operating costs than synthetic systems.

Aquilon Chill

  • High-pressure design eliminates the need for a backup generator and separate small condensing unit for off-cycle pressure protection
  • Chiller heat exchanger options: multiple parallel brazed plate heat exchangers―or a single shell and tube heat exchanger
  • Multiple parallel transcritical semi-hermetic compressors
  • High-efficiency oil management system with coalescing separators
  • VFD on lead compressor; second VFD is optional
  • Cooling capacities from 50-250 tons (for larger capacities, consult factory)
  • Superheater/liquid subcooler for efficient equipment protection
  • Microprocessor package control with local HMI and remote monitoring capability
  • Multiple heat reclaim opportunities and benefits, including direct heat recovery (HVAC), snow melt, domestic hot water, sub slab warming, and process heating
  • Optional factory-mounted plate heat exchangers for water-cooled gas coolers for use with site cooling water
  • Optional waterproof all-weather enclosure with insulation for outdoor installations

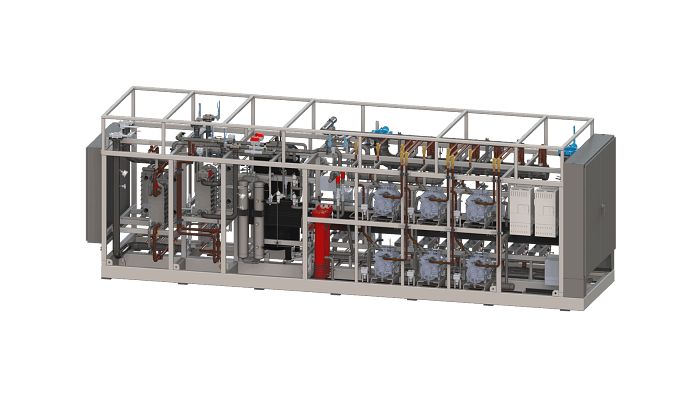

Aquilon Chill product image

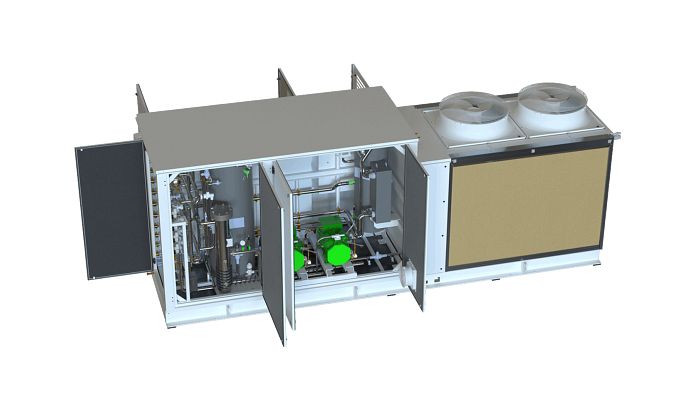

Aquilon DS product image

Chiller packages

  • Condenser options: air-cooled, water-cooled, evaporative
  • Evaporator options: shell & tube, plate & frame, shell & plate
  • Utilizes high-efficiency heat exchangers to meet application needs
  • Packages with robust screw or reciprocating compressors

Create a high-performing, sustainable ice rink.

Talk to an expert
